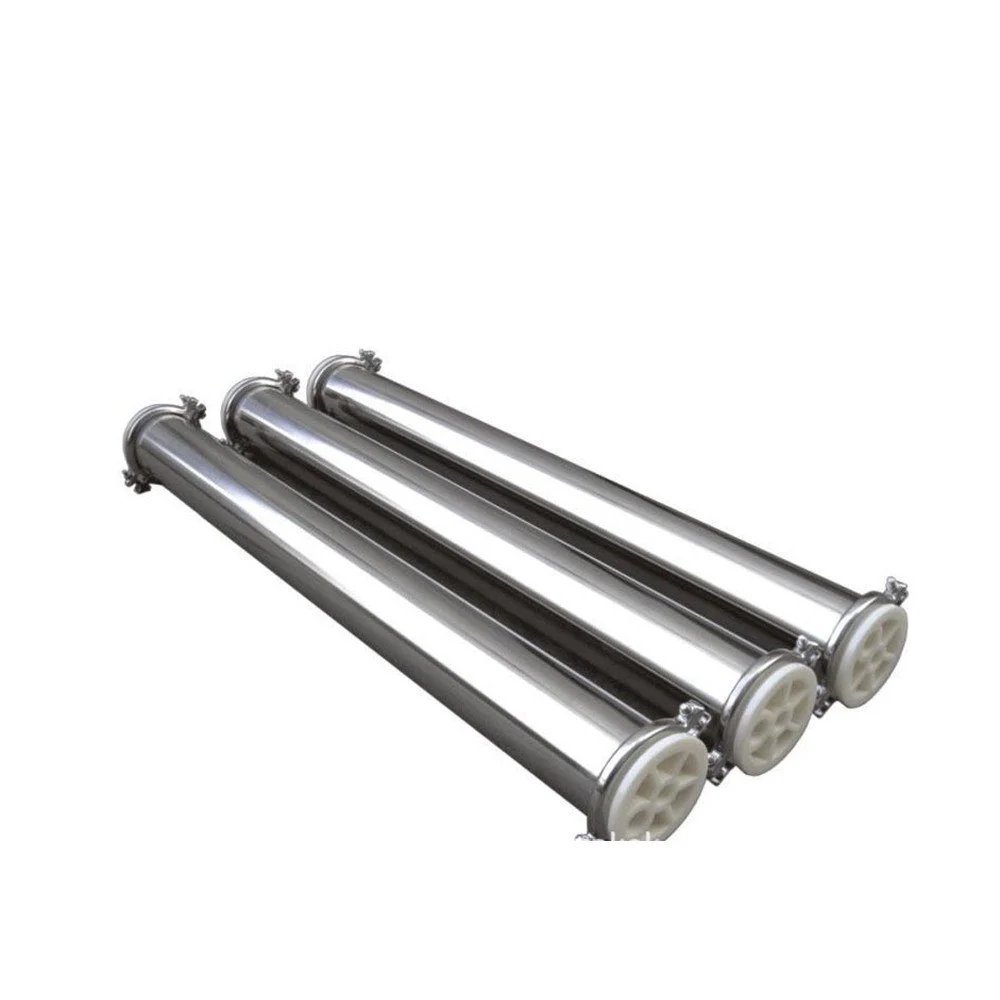

Stainless steel membrane housing, ss304 material, 4040

Type: Reverse Osmosis Membrane Housing
Material: Stainless Steel SS 304 for high corrosion resistance and durability
Size / Compatibility: Designed for standard 4040 RO membrane elements
Construction: Heavy-duty seamless body with hygienic finish
Port Configuration: End-port design for easy installation and maintenance

LKR 10,000.00

85B, Pagoda Road, Nugegoda, Sri Lanka.

Our courier will deliver to the specified address

2-3 Working Days

Pay Cash Upon the delivery

Payment Methods:

Section	Specification
Model	SS RO Membrane Housing – 4040
Membrane Compatibility	Standard 4″ × 40″ RO Membranes (Toray, Dow/Dupont, Hydranautics, LG, etc.)
Material of Construction	Stainless Steel SS-304 / SS-316 (as per requirement)
End Connection Type	Clamp Type / Screw End Cap / Flanged End (custom options)
No. of Membranes	Single element (4040 size)
Operating Pressure	Up to 300 PSI (20 kg/cm²) for SS-304 Up to 1000 PSI (70 kg/cm²) for SS-316 (high pressure brackish water/seawater applications)
Testing Pressure	1.5 times the operating pressure
Surface Finish	Polished / Electro-polished (internal & external)
End Port Configuration	End Port / Side Port (depending on design)
Sealing Material	EPDM / Silicon / Viton O-rings
Operating Temperature	5°C – 50°C
Connections	¾” or 1″ BSP/NPT threaded (standard); Flanged option available
Applications	Industrial RO plants, Commercial RO systems, Seawater RO, Process water treatment
Features	High corrosion resistance, long life, leak-proof sealing, easy maintenance, durable under high pressure
Compliance	ASME / NSF standards (depending on manufacturer)
